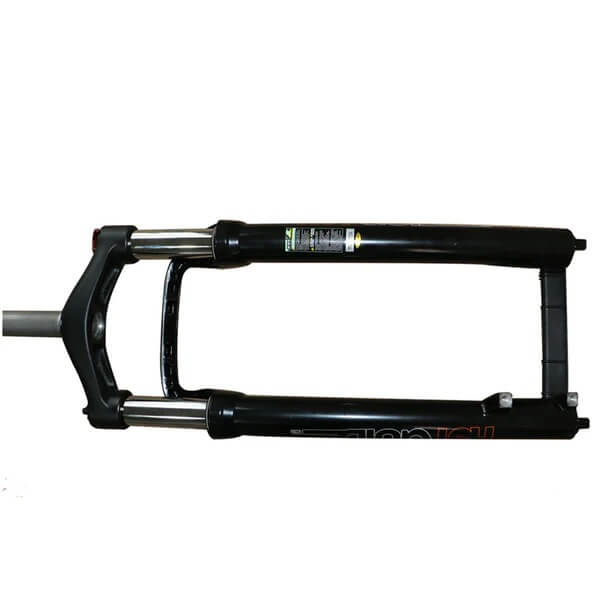

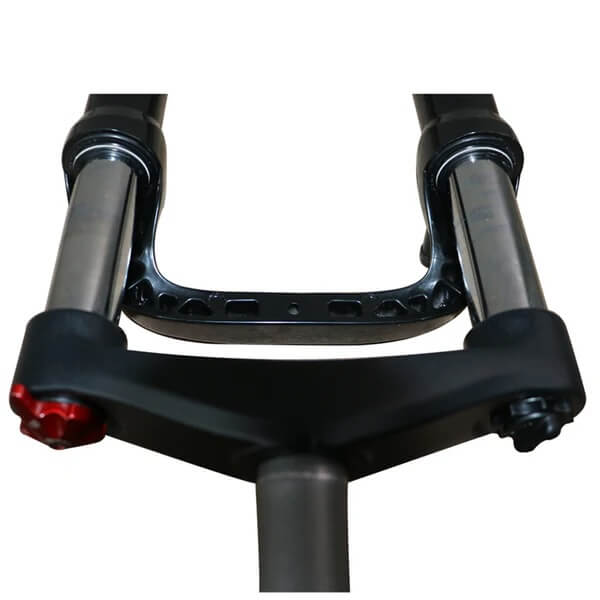

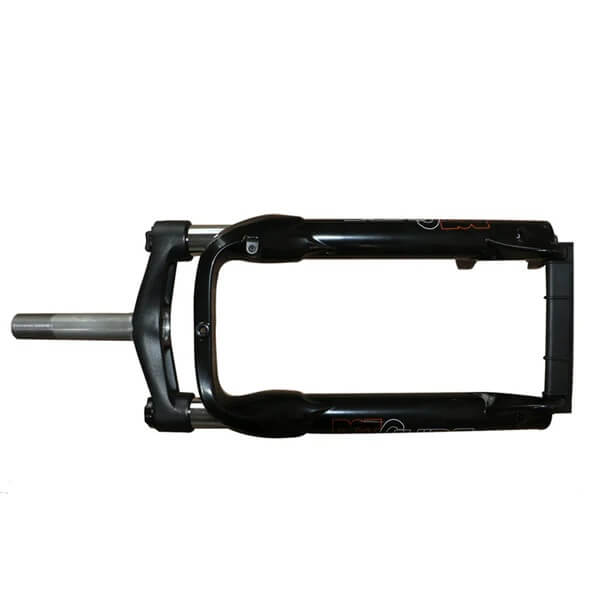

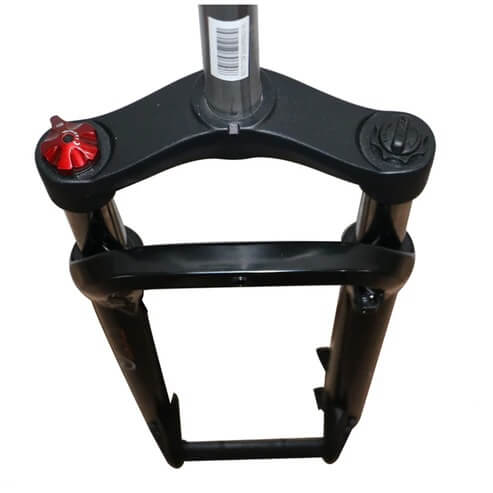

Eunorau SUSPENSION FRONT FORK for Fat Tire Electric Bikes

This is the Eunorau FULL SUSPENSION FRONT FORK for Fat Tire Electric Bikes. You can choose between a 20" (E-FAT-MN/E-FAT-STEP models) or 26" (FAT-HS/FAT-HD/DEFENDER-S/FAT-AWD 2.0) sizes.

Note:

• To be more compatible with E-FAT-STEP/E-FAT-MN with 160mm brake rotors, please remove the ORIGINAL DISC BRAKE MOUNT ADAPTER first, then directly attach the brake caliper to the fork you purchased.
• If disc brake rotors of your ebike have been changed to 180mm, you need to have one extra converter for post mount caliper.
• To fit FAT-HS, you must cut the steering tube 29mm shorter.

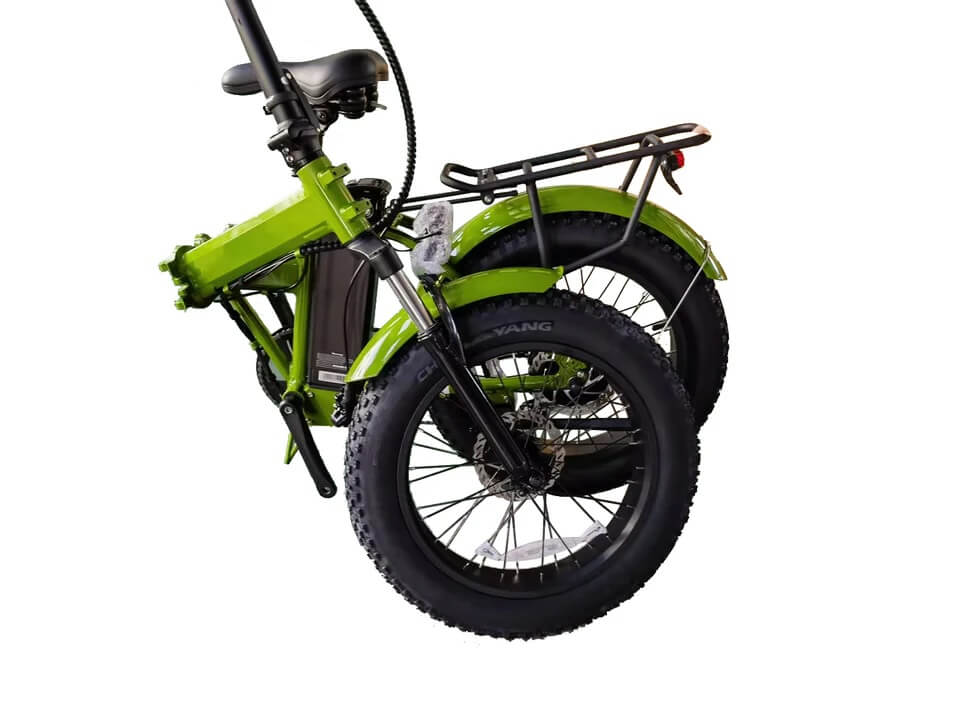

• Below is the demonstration image illustrating the effects post-installation of the 20" suspension fork on the E-FAT-MN and E-FAT-STEP.

Product Specifications:

20"

• Brand: Eunorau
• Material: Alloy
• Travel: 60mm
• Color: Black
• Open Size: 135mm
• Lock: Mechanic Lock
• Brake Caliper Mount Style: Post / Direct

26:

• Brand: Eunorau
• Material: Alloy
• Travel: 75mm
• Color: Black
• Open Size: 135mm
• Lock: Mechanic Lock
• Brake Caliper Mount Style: Post / Direct
