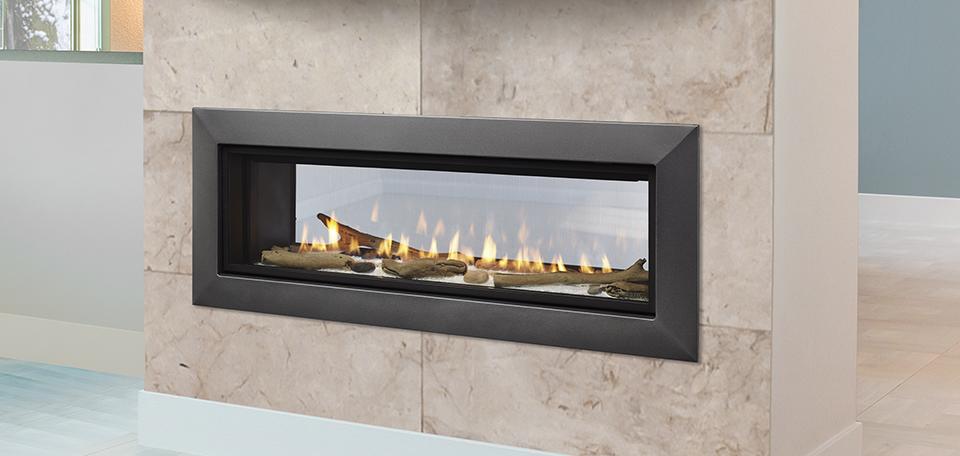

The Majestic Echelon II seriesĀ ECHEL48STIN-C 48 inch top direct vent fireplace is theĀ ideal addition to your home.
Active flames and interior options give this contemporary fireplace a unique look. Get lost in its fire and the brilliance of glass illuminated by lights.
The IntelliFire Plus RC300 wireless remote control is design to control your fireplace easily.Ā The RC300 can be docked on the wall to mimic a thermostat or used as a remote.Ā It comes with plenty of features such as flame height adjustment and child lock so you can create the perfect ambient warmth for your home.
Benefits:
- Direct Vent Technology:Ā Ā With Direct Vent fireplaces and inserts, 100% of combustion exhaust and fumes are removed from your home. These sealed fireplaces provide optimal heat and conserve energy. Learn More
- IntelliFire Plus:Ā Ā The IntelliFire ignition system is an advanced intermittent pilot (IPI) system. IntelliFire constantly monitors ignition, ensures safe functioning and conserves up to $10/month in energy costs.
- IntelliFire Plus RC300 Wireless Control:Ā Ā Designed to wirelessly control your fireplace, a large LCD screen and simple navigation provide easy operation. The RC300 can be docked on the wall to mimic a thermostat or used as a remote. Features: pilot activation, automatic battery backup, 5-step flame height, child lock, fan speed, two additional auxiliary functions, wall docking station, timer mode, thermostat mode, room temperature readout, on/off
- Fireplace Safety:Ā Ā A safety barrier screen is included as a standard equipment on all Direct Vent gas fireplaces and inserts. These screens help reduce the chance of a potential serious burn.
- Limited Lifetime Warranty:Ā Ā Majestic's Limited Lifetime Warranty is the most comprehensive in the industry.Ā ItĀ highlights their commitment to producing the best and most reliable products available, and allows you to own your hearth appliance with confidence.Ā S
Product Specifications:
Size: |
48" |
Design: |
See-Through |
Heating Capacity: |
Up to 1300 sq ft |
Max BTU/hr: |
40,000 |
Fuel Type: |
Natural Gas |
Type: |
Linear |
Mount Type: |
Wall MountedĀ |
Vent Type: |
Direct VentĀ |
Vent Location: |
Top VentĀ |
Remote Control: |
Yes |
Dimensions |
|
Width: |
58" |
Depth: |
17-1/8" |
Height: |
41-3/4" |
Glass Size |
47-1/2" x 12-1/2"Ā |
Framing Dimensions |
|
Width: |
60-1/4"Ā |
Depth: |
17"Ā |
Height: |
42"Ā |
Ā
Features:
- 21,000 - 40,000 Btu/Hour Input (NG)
- 20,000 - 34,000 Btu/Hour Input (LP) - Can be converted to Liquid Propane with conversion kit (sold separately)
- See-through design
- Ceramic glass
- Standard bronze glass media
- IntelliFire Plus PC300 Wireless Control is standard with the Echelon II
- Fronts are not included, but required for installation
- DVP pipe minimum off top: two feet
- Showcase the interior with glass illuminated by LED lights
Ā
Model:Ā
|
|
|
|
|
|
|
|
|
|
|
|
Ā
Appearance:
|
|
|
|
|
|
|
|
|
|
|
|
Ā
Details:
|
|
|
|
|
|
|
|
Ā
Safety Features:
|
|
|
|
|
|
|
|
Dimensions:Ā
|
|
|
|
|
|
|
|
Ā
Technical Specs:
|
|
|
|
|
|
Front Options (quantity must be 2, as it's a see-through fireplace with 2 sides:
- CFT-48-BK 48" Clean Face Trim Front in Black
- CFT-48-BZ 48" Clean Face Trim Front in Bronze
- CFT-48-PT 48" Clean Face Trim Front in Pewter
- PFF-48-PT 48" Picture Frame Front in Pewter
- PFF-48-CH 48" Picture Frame Front in Charcoal
- GLASS-OY Glass Pieces in Onyx
- GLASS-SP Glass Pieces in Sapphire
- GLASS-BZ Glass Pieces in Bronze
- GLASS-DM Glass Pieces in Diamond
Liquid Propane Conversion Kit:
Decorative Stones:Heat Zone Kit:
Liner Kit:
- BGK-48 Reflective Black Glass Liner Kit for 48" Fireplace
- BGK-LINEARST See-Through Reflective Black Glass Liner Kit
Driftwood Log Set:
